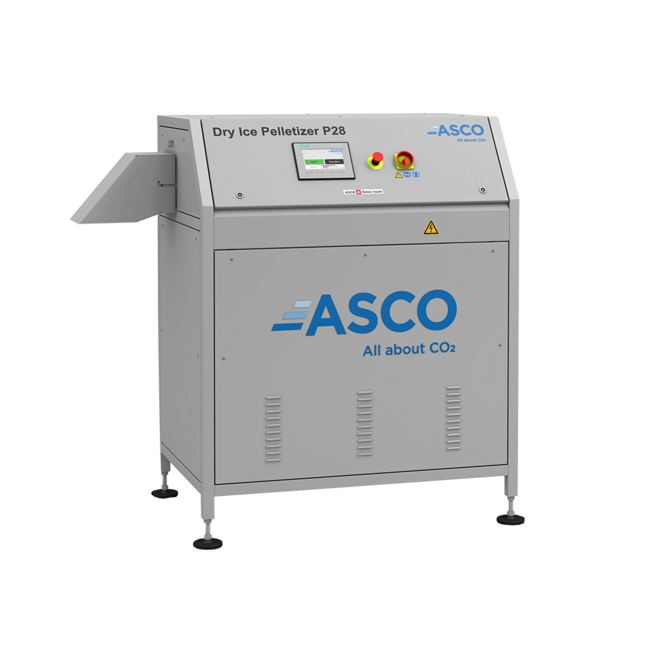

ASCO DRY ICE PELLETIZER P28i

The ASCO Dry Ice Pelletizer P28i is a compact and powerful dry ice machine from our i-Series line. Having a production capacity of 280 kg/h (617 lb/h) it meets the demands for higher dry ice quantities plus quality and flexibility in the daily working process.

As a model of ASCO's i-Series, it is equipped with state-of-the-art remote control devices and thus is ready for a wide range of services in the areas of Remote Access, Remote Data, Remote Management. Be it for fast and efficient trouble shooting and maintenance or for gathering production and performance data - the ASCO i-Series offers a wide range of possibilities to link Industry 4.0 with dry ice production.

The ASCO Dry Ice Pelletizer P28i is driven by a powerful hydraulic unit featuring instant push button start. All functions are controlled by a Siemens PLC with touch screen. A fully automatic control of oil temperature and dry ice snowing process guarantees continuous dry ice production without any supervision right from pushing the start button.

Read Product Leaflet



Image Specifications

Production capacity:
280 kg/h (617 lb/h) � 5% at 16 - 20 bar (232 - 290 psi) CO2 inlet pressure
Voltage:
480 V / 60 Hz / 3 Ph + PE (other voltages on request)
Max. power consumption:
5.6 kW (7.5 HP)
Dimensions pelletizer (L x W x H):
1'560 x 800 x 1'450 mm (61 x 32 x 57 in)
Weight net:
approx. 490 kg (1'100 lb) (with hydraulic oil)
approx. 440 kg (970 lb) (without hydraulic oil)
Weight packed:
approx. 550 kg (1'213 lb) (without hydraulic oil)
CO2 inlet connection:
1'' BSP female
CO2 source:
CO2 storage tank, liquid phase (16 - 20 bar) (232 - 290 psi)
Optional Connectivity:
Remote access and data services: LAN, Ethernet, WiFi, 3G/4G
