DRY ICE BLASTING

ASCO NANOJET

THE PLASTICS EXPERT
Slider 1
Slider 2
Slider 3
Slider 3
Slider 3
Slider 3
Slider 3
Slider 3

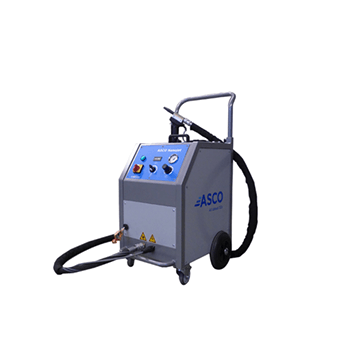

The ASCO Nanojet has been specially developed for the plastics industry. It has an integrated pellet mill in which the dry ice pellets are crushed into finest particles. With the ASCO Nanojet a lot of small particles hit on the surface to be cleaned which ensures a precise, fast and consistent surface cleaning.

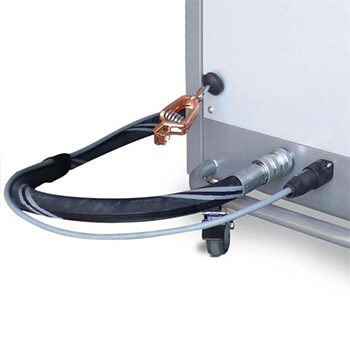

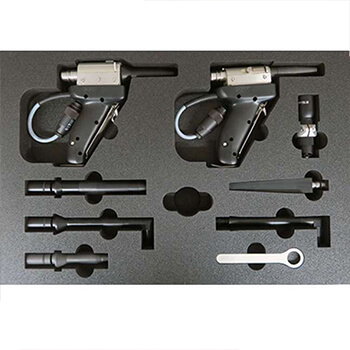

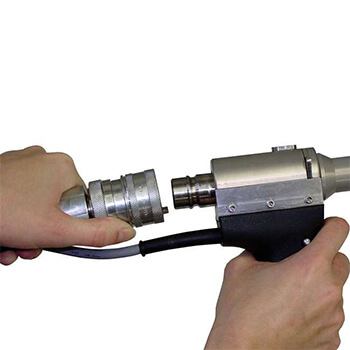

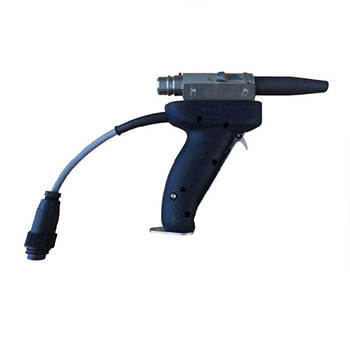

Together with the newly developed gun nozzle and the supplied blasting gun with integrated cutter (for the option of even finer dry ice pellets), the ASCO Nanojet is the prefect all-round package for almost every application in the plastics industry. The integrated grounding roll ensures safe handling during the blasting process.

Read Product Leaflet

Image Specifications

Material:
Frame and cover sheets made of powder-coated steel
Dimensions (L x W x H) incl. wheels and folded handle:
635 x 491 x 872 - 1'120 mm (variable)
(25 x 20 x 35 - 44 in)
Weight empty:
approx. 52 kg (115 lb)
Content of pellet hopper:
approx. 6 kg (13 lb)
Blasting pressure:
2 - 10 bar (29 - 145 psi) (adjustable)
Dry ice consumption:
5 - 20 kg/h (11 - 44 lb/h) (stepless)
Max. power consumption:
500 W (0.7 HP) nominal
Voltage:
230 V, 50 Hz, 1 Ph
(other voltages on request)
Inlet hose connection:
3/4" BSP female 3/4" Claw coupling fitted
